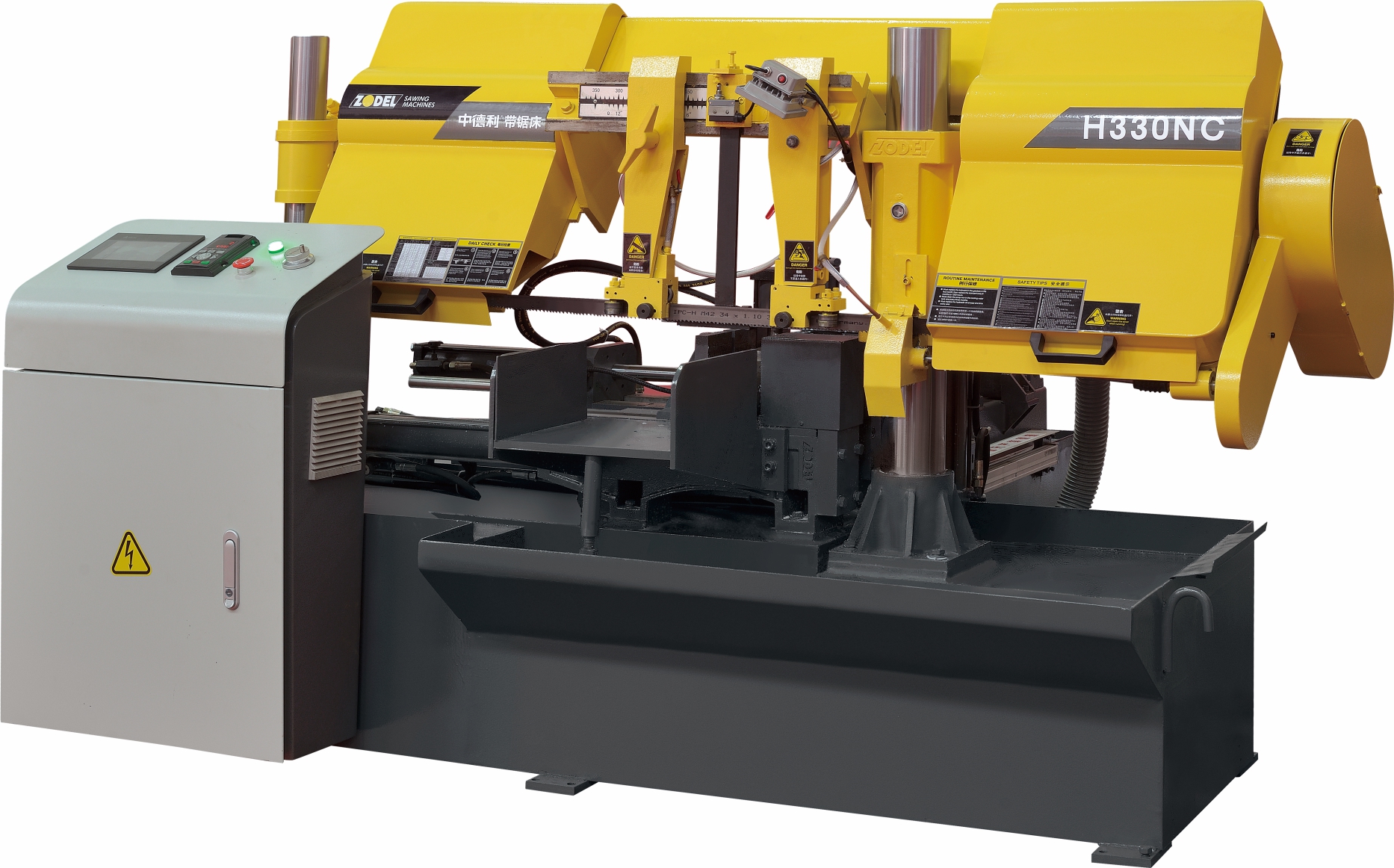

H-330NC automatic DOUBL-COLUMN HORIZONTAL METAL Band Saw M
New TH-330NC Automatic Band Saws Specifications
| Model Name | NC automatic Band Saws TH-330NC | |
|
Max. cutting capacity |
Round ○ | 330mm |
| Quadrate □ | 330×330mm | |
| Bundle cutting | Widh | 180 to 330mm |
| Height | 50 to 160mm | |
|
Saw Blade |
Speed | 24,32,45,68,80M/min, or INVERTER 20-90M/min |
| Size | 34×1.1×4115 | |
| Guides | Carbide and bearing blade guides | |
| Cleaning | Power wire brush & flood coolant | |
| Tension | Manual | |
| Motor output | Blade | 4.0kw |
| Hydraulic | 0.75kw | |
| Coolant | 0.09kw | |
| Multiple feed | 500mm × N times | |
| Work Vise | Hydraulic | |
| Machine Weight | 1650kg | |
| Packing Size(L×W×H) | 2200×2200×1400mm | |
| Container Loads | 5sets/one 40”container | |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
